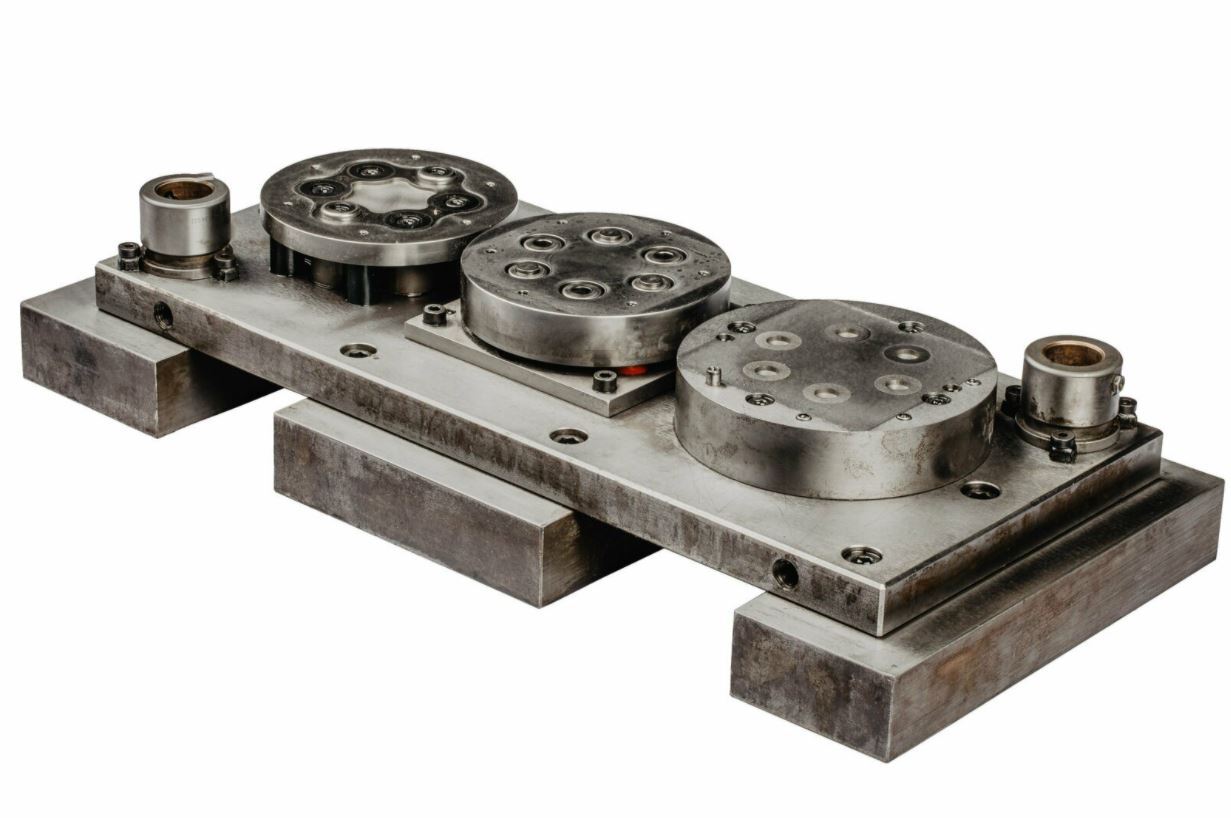

Tools of GDH
Need smart tool solutions or the realization of complicated processing problems? From planning and design through the development of the individual components to the construction of the finished tool: GDH is in the design and manufacture of tools for sheet metal processing since 1992 competent partner. Our strengths are our deep-drawing tools especially when multiple trains are required. Tools we manufacture as an insert, consequential, Progressive and transfer dies, both for prototypes, as well as for series production up to a maximum weight of 10 tons.

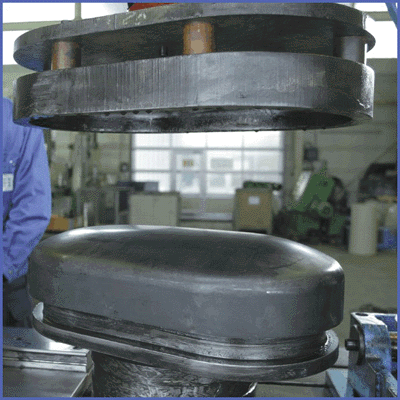

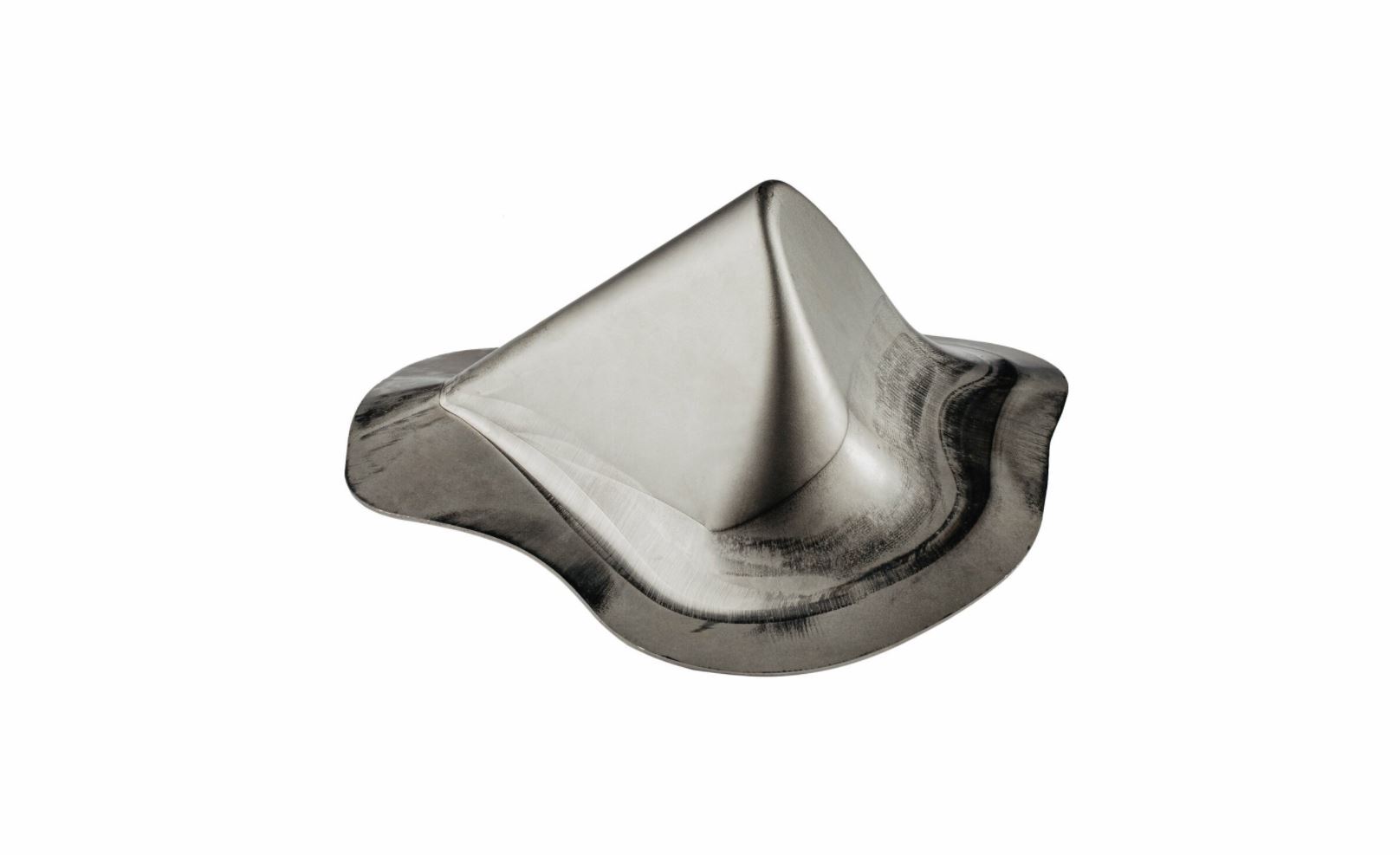

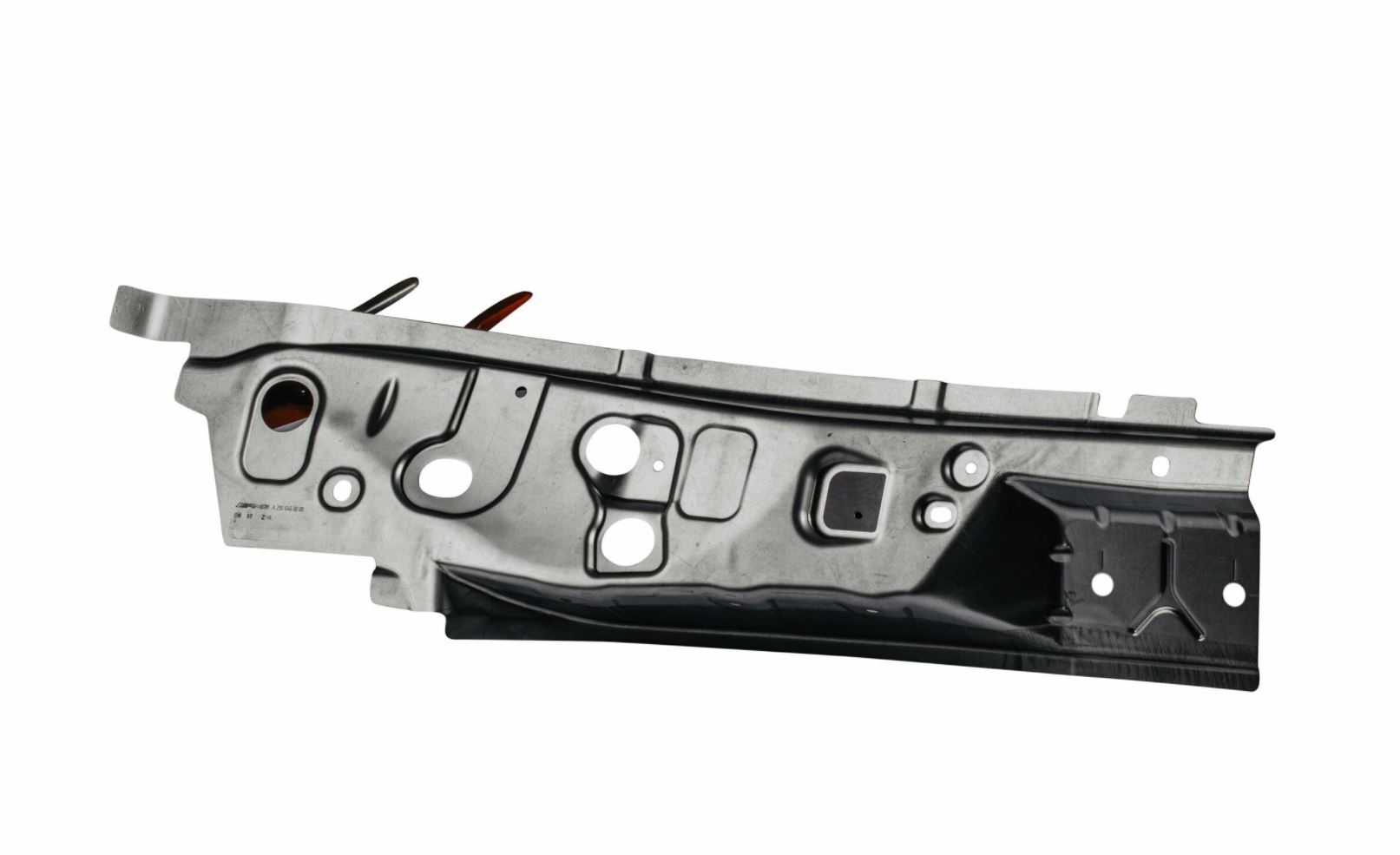

Deep-drawn parts of GDH

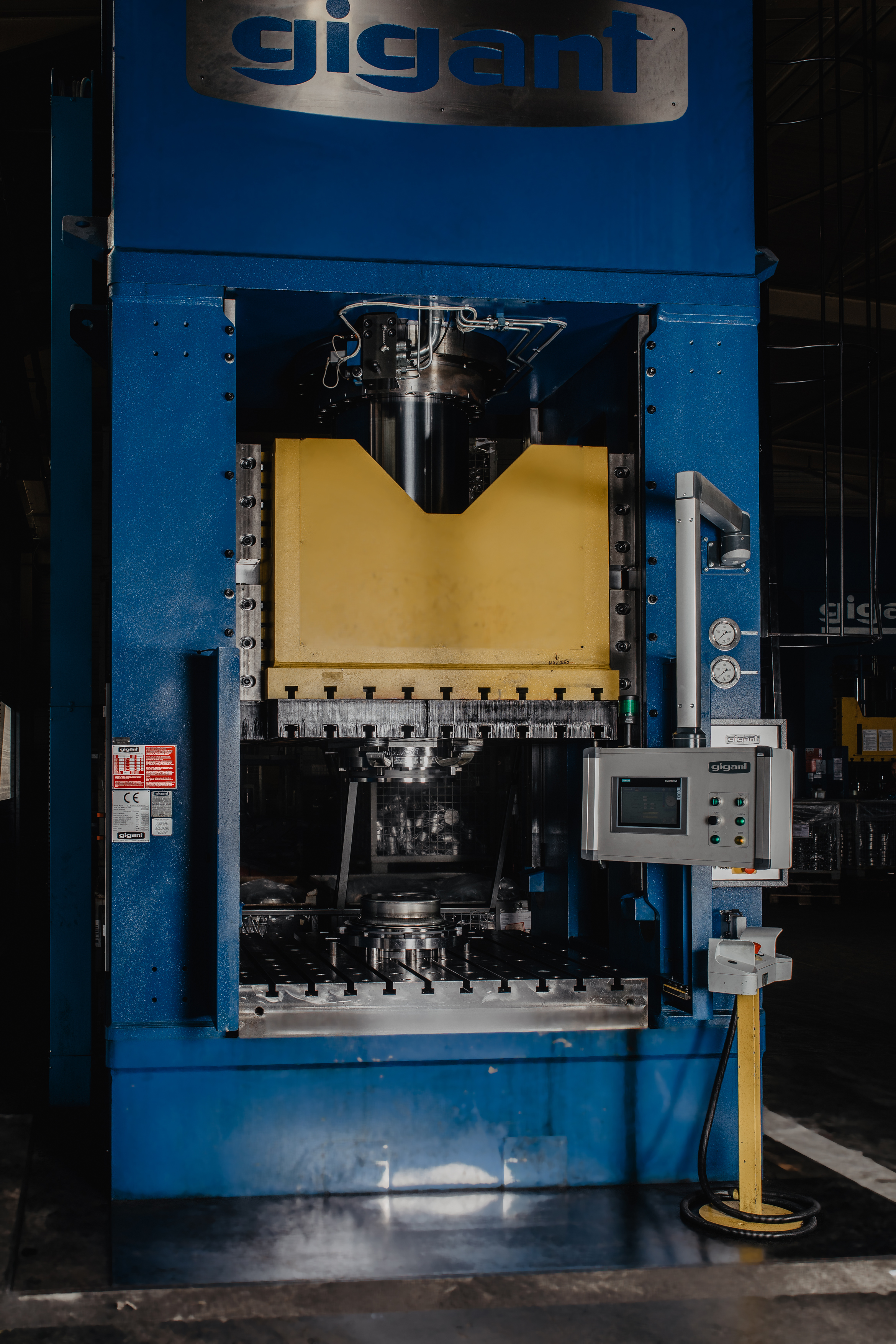

We manufacture drawn parts made of all metal forming materials to be processed. Materials such as steel, stainless steel and nonferrous metals are brought with us into the right shape. The processing at a material thickness of 0.3 mm - 10 mm thickness up to a pressure of 800 tons possible. We manufacture according to your drawings, CAD data, and according to your samples.Their tools are taken or produced in-house.

In addition, we offer the possibility of deep drawing simulation with single trains in our house.

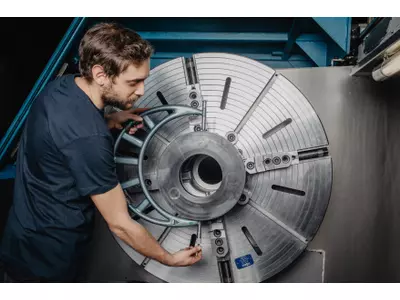

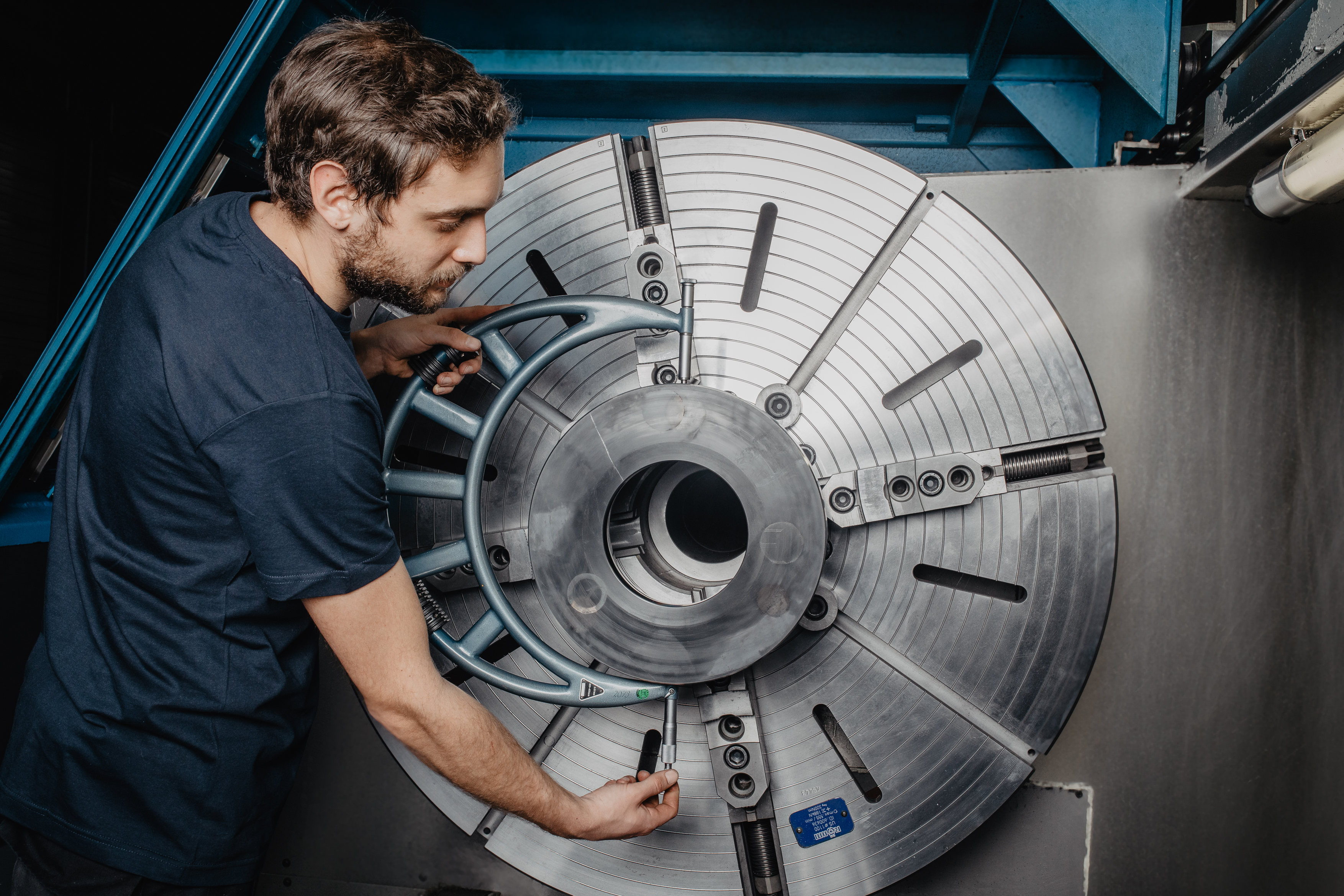

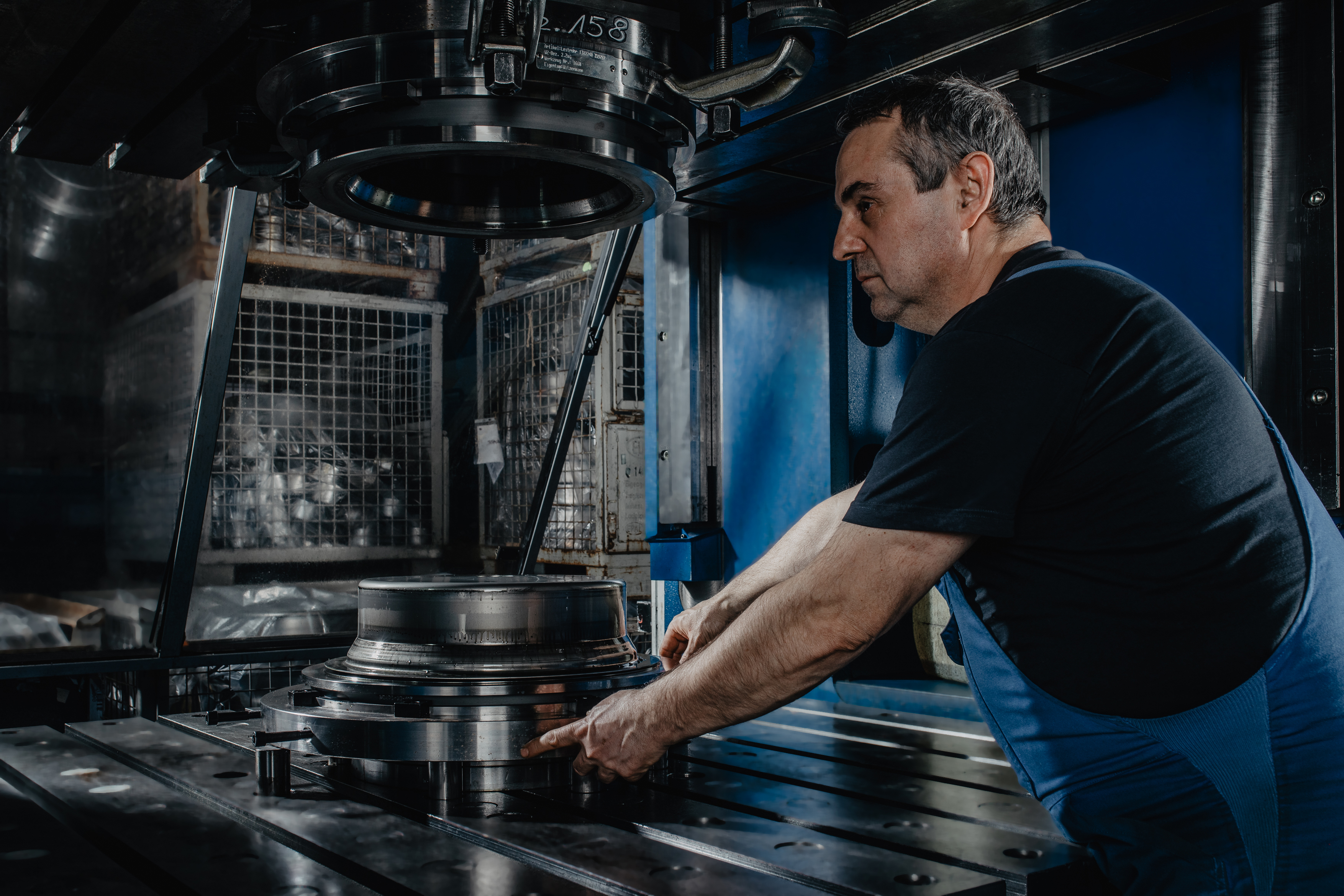

Pressed parts of GDH
With us you get spun parts from all metal forming materials to be processed. Materials such as copper, brass, steel, aluminum, stainless steel, tin, and zinc are staying with us in the right shape. Rotationally symmetrical workpieces are to oä to a round plate size of 800 mm in diameter with an initial sheet thickness of 6 mm in St, 4 mm in VA, 8 mm in CU / CnZu. and 10 mm in Al manufactured as pressed parts. We manufacture according to your drawings, CAD data, and according to your samples. Their tools are taken or produced in-house.

Laser Technology at GDH

Lasers:
We laser in 2D technology in possible sizes 3000 x 1500 mm.

maximum thickness
* In VA to 12 mm
* St to 20 mm
* Al to 6 mm

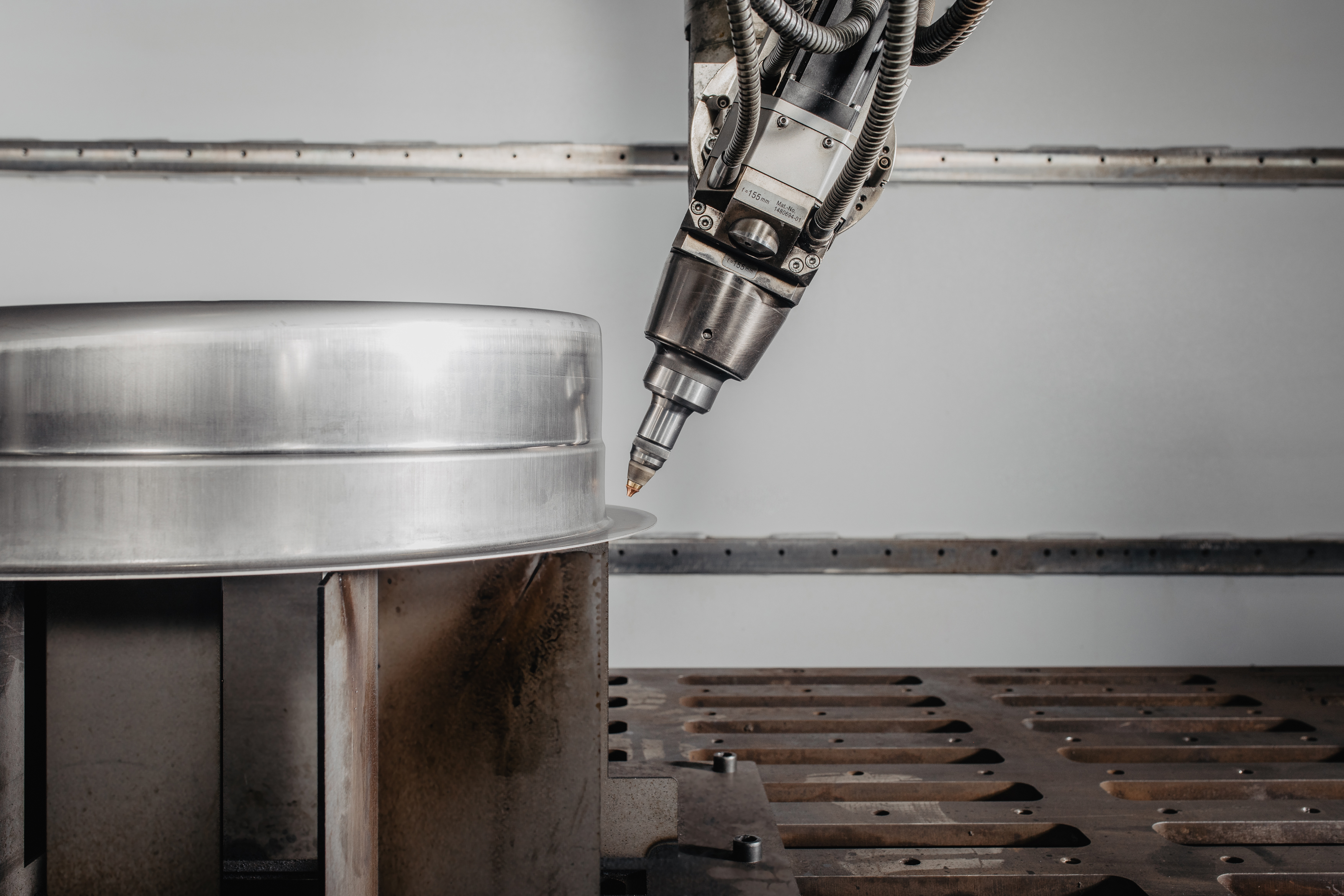

In 3D technology routes of sizes 3200 x 1525 x 600 mm are possible.

Maximum thickness here
* In VA to 4 mm
* St to 8 mm
* Al to 3 mm

Punch Technology GDH

Punching:

Up to a print capacity of 120 tons from the tape.

Up to 800 tonnes in the insertion process.
