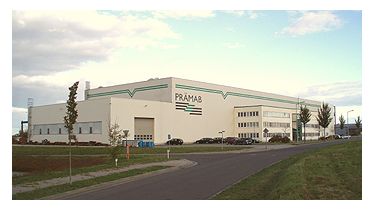

Prämab GmbH & Co. KG

78 Employees
Certificated quality assurance: DIN EN ISO 9001:2000
Certificated quality level for welding: Extended welding certificate according to DIN 18800
Additional welding certificate: Permission for welding on railway-vehicles according to DIN 6700-2

Abilities
Welding, Machining, Workshop assembly
Manufacturing of heavy and complex parts with high quality
Shop assembly of machines for special purpose
On-side erection, Commissioning
Engineering

Taylor Area
maximum weight of single parts: 20 t
CNC-torch cutting device material thickness up to 250 mm
working range 3.700 x 12.000 mm
Sand blasting machine cross-section up to 1.500 x 500 mm
Sawing machine maximum diameter 500 mm

Welding Workshop
maximum weight parts up to 90 t
manufacturing area 16.000 sqft
Equipped with modern welding gear, MAG-, Impulse-, WIG-welding devices
Flame heating and flame straightening technology

Machining Shop
maximum weight parts up to 90 t
several boring mills, CNC table size 5.000 x 9.000 mm
6 - Axes turntable size 2.750 x 3.250 mm
working range x,y,z: 12.000 mm,4500 mm,1250 mm
maximum accuracy +/- 0,05 mm

Turning machines maximum diameter: 250 mm
maximum length: 2000 mm

Milling machine table size 1600x335 mm
working range x/y/z 900/ 355/ 450 mm

Radial boring machine maximum boring diameter 100 mm
max. working radius 3.000 mm

Workshop Assembly
maximum crane capacity: 90 t
assembly area: 7000 sqft
height shop crane: 40 ft
Clamping plates for accurate assembly of complete machines and components
Assembly of electric parts, wiring, piping of hydraulic and pneumatic is made by fixed local subcontractors
