Machinery:

- Sandblasting company Rumpp (connection power 135kW)
- Powder coating unit Fa Rippert
- Workpiece Size: Length: 3000mm
Width: 1.200mm
Height: 2.000mm
Weight per traverse: 300 KG

Process Description:

1 Auf-/Abgabe

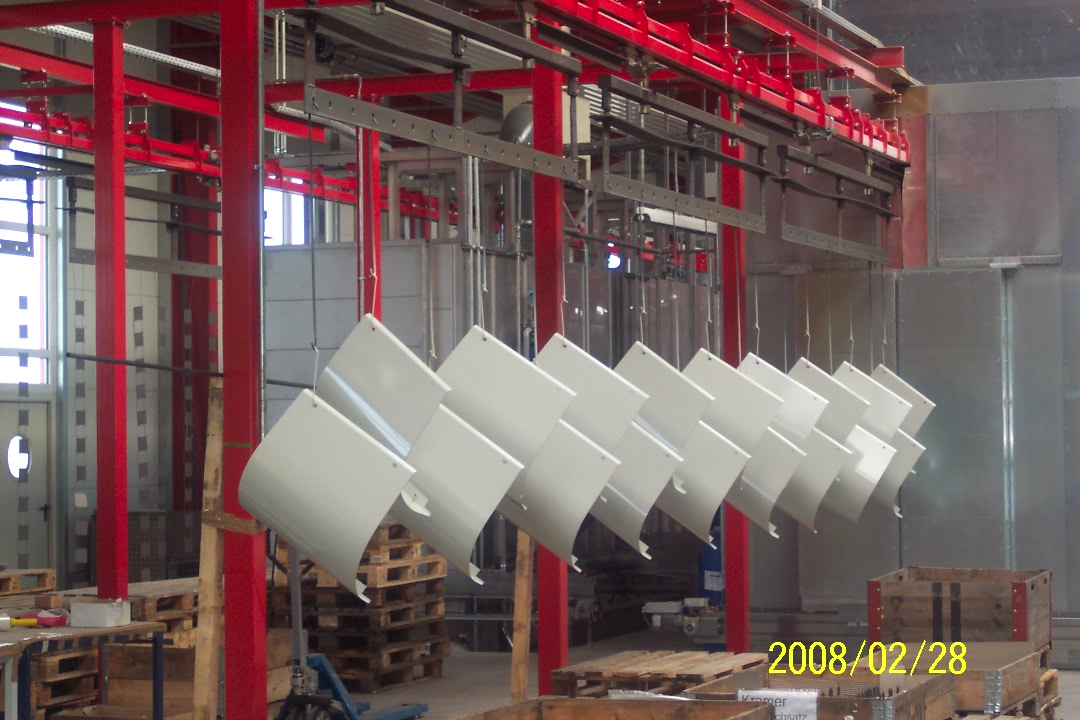

The workpieces are attached manually to the spreader beam handling equipment.
To the quarrels of eg heavy workpieces, the conveyor system through a
unguided Hub-/Senkstation be lowered at this position to the hanging
or removal to facilitate.

2 Strahanlage
The beam system is operated with 8 motors (11KW per engine). Drive the motors
each an impeller, which then 3,000 u / min rotate. Is irradiated with a
Steel cast grain size of 0.60 to 1.00 mm.

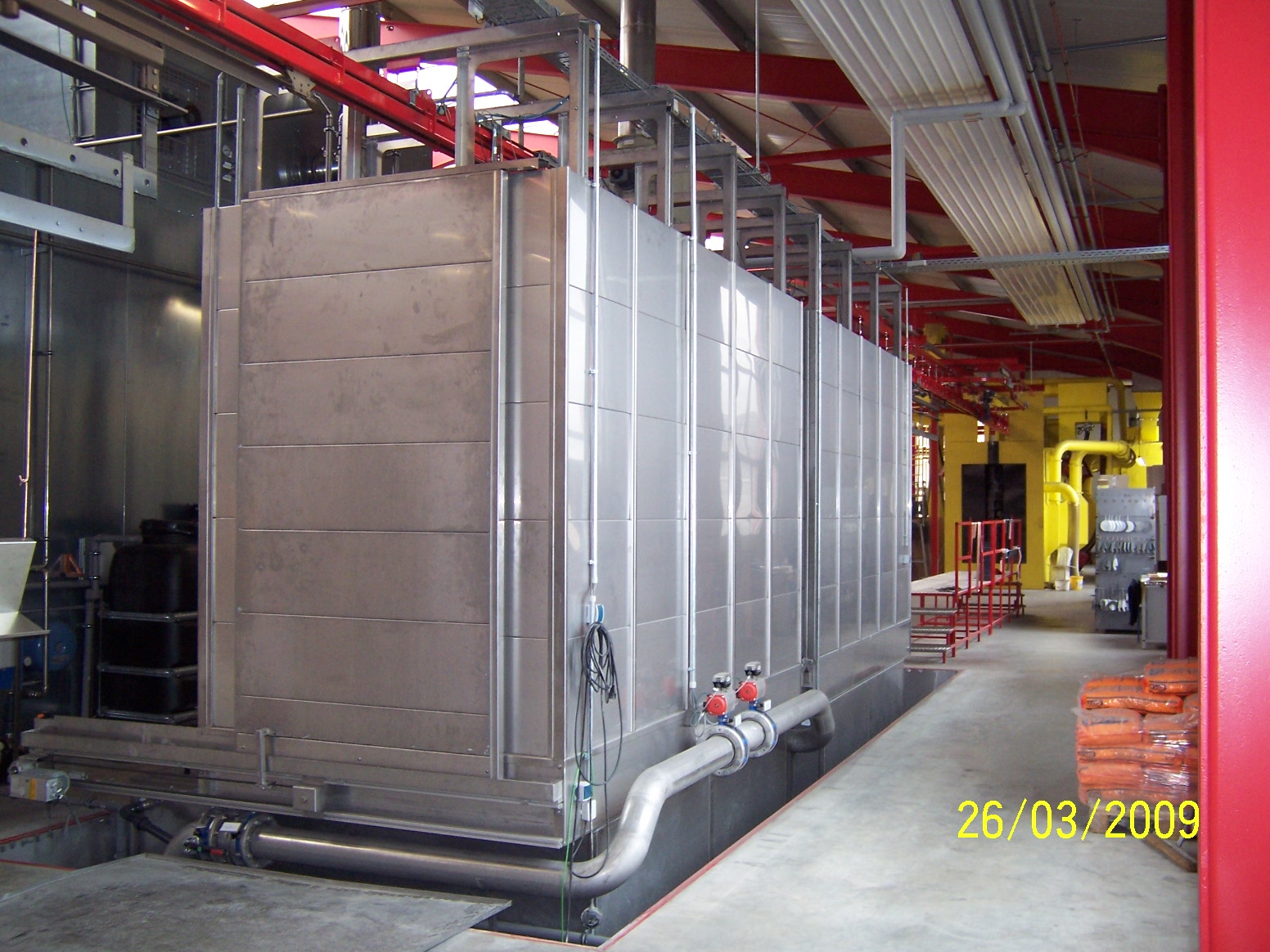

3 Pretreatment + Haftwasser dryer
(3min handling time.) Degreasing, phosphating FE: Step 1
Step 2: Rinse (treatment time 1min)
Step 3: Rinse with deionized water (treatment time 1min)
Step 4: Dry Detention water dryer (160 ° C)

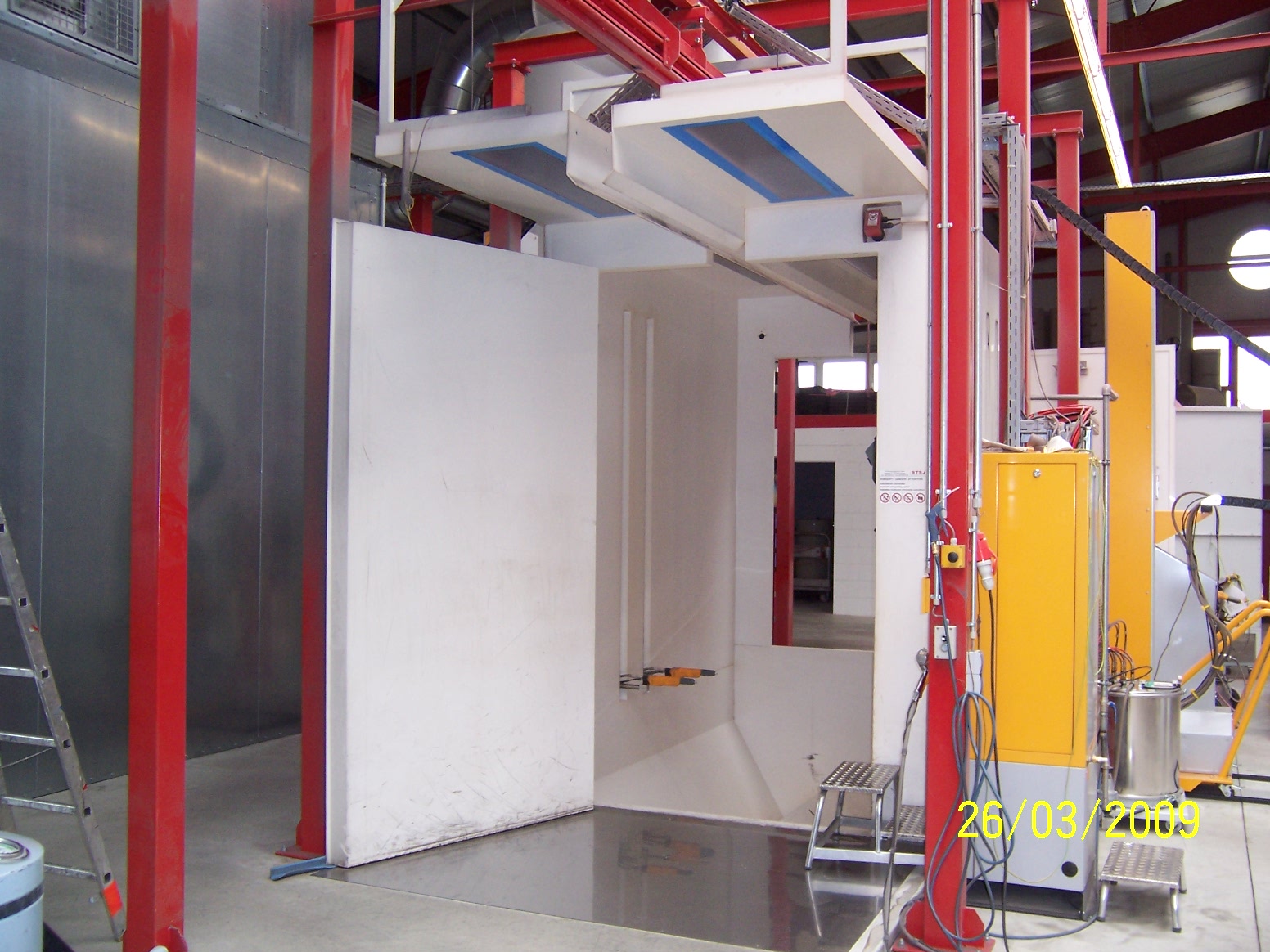

4 Automatic powder booth + Pulvereinbrennofen
Step 1: powders of the parts by 4 guns (2 right, 2 left the cabin) alternately
go up and down.
Step 2: burn the powder in Pulvereinbrennofen at 220 ° C
