We not only bring your plate in the form,
we solve problems - Modern, precise and fast!

Whether rational series production or sophisticated items: punch in a single Teileaufspannung and We will laser engrave exactly with our modern, high-performance CNC Punch Laser Center to your requirements. The material of which the plate is also, our professionals bring it into form. The result is highly accurate cuts and precise contours, even in extremely complex and elaborate sheet metal parts. We understand the challenges and problems of various industries and are well prepared for the highest quality requirements.

Production:

Punching / lasers
Bending
Rounding
Welding TIG / MIG / MAG
Spot welding
Stud Welding
Rivet
Pressing

Manufacturer of attachment tools for Baumschinen

Technical Details for our plasma cutting machine:


- Max. Panel size 6000x2000mm,
- Max. Plate thickness 50mm mild steel (up S355), aluminum ALMG3 to 40 mm, stainless steel 1.4301 and 1.4571 to 30mm
- Tubing cutter: Ø30-300mm diameter and up to 6300 mm long tubes with a weight of max. 400 kg, maximum wall thickness see point 2
- Outstanding results in the cutting of holes with a diameter / thickness ratio of 1: 1
- Holes with angular deviation in accordance with DIN EN ISO 9013 in the range 2-4
- High cutting quality according to DIN EN ISO 9013 for Perpendicularity 2-4
by Mark or notches can be applied among others their logo, and item numbers on components, in the color section,: Identification of all components -
- Graining: grains points to 2/10 millimeters are accurately transferred to internal parts


Werkstattstechnik:

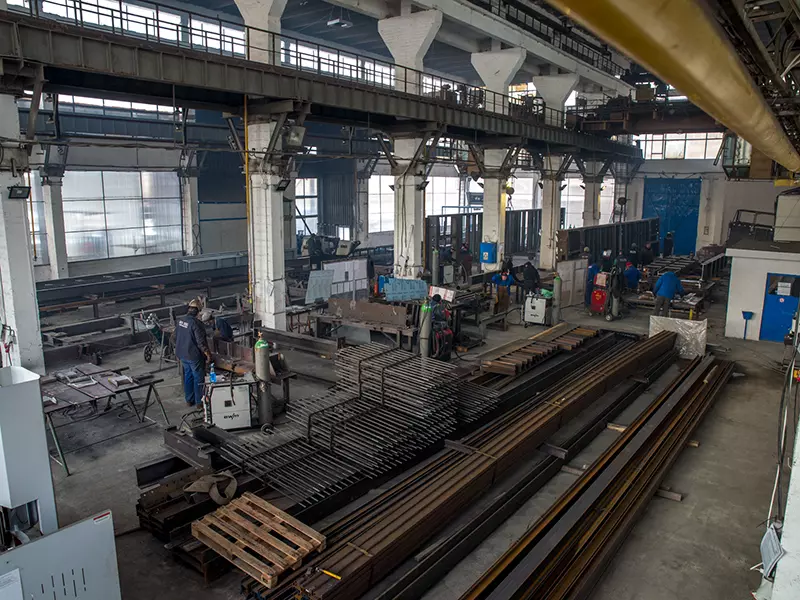

- Workshop hall with 910m² workspace
- Portallkran 8 tons lifting force
- Up to 20 meters editing support lengths (drilling, cutting, welding, milling)
- Welding workplace 6x20 meters
- Welding of material thicknesses up to 50mm
- Bender and guillotine shears up to 2500mm length, material thickness 10 mm

Installation Services:

- 20 mechanics, 10 fully equipped workshop trolley
- Boom Truck Boom to 21 meters 750Kg
- Platform for 2 pers.Up to 16 meters
- Vacuum lifting device for sandwich and trapezoidal

Since it was founded in 1993, Agro Line has established significant domestic and international relationships in the production of carbon steel.
We are supplying in our 20,000m2 production field, with 230 employees more than ten internationally renowned Western European strategic partners like: Ammann, Behringer, elumatec, Willibald, Goldhofer.
We are able to provide the complete process of production according to the customer’s requirements and documentation especially machined parts up to six metres in size.
