Using its experience gained from a long-standing tradition in massive forming and subsequent machining, Schmiedetechnik Plettenberg produces high-precision components for international customers in the automotive and non-automotive sectors.

We are your competent partner in fluid technology with four locations in and outside Germany

- CNC long and short turned parts
- Vertical turning
- Assembly of final-tested mechanical components
- grinding (inside, outside, in the passage etc.)
- honing
- milling
- sandblasting
- hard machining



Complete machining on modern CNC machines (long and short turned parts, vertical turning)

- complex workpieces (from rd3 mm to rd300 mm, vertical turning up to rd150mm) can be produced in batches from 1000 to 100,000 pieces

- All steels, case-hardened and highly tempered nitriding steels, stainless steels, non-ferrous metals as well as extruded, sintered and forged blanks can be machined.



Our precisely machined and accurately controlled individual parts are assembled with the supplied, controlled external parts and then tested.
The end result is tested and perfectly functioning assemblies directly to the customer's assembly line.

We provide machining services of unit parts, prototypes and short-run production. Problem-solving and provision of suitable machining solutions are what we do best. Our customers trust us because we are flexible with their enquiries and requirements, we deliver on-time and offer short- delivery times. This is what makes us stand out from the rest.
The precision parts that we produced are known for its top quality, due to the raw materials used. Our experienced and passionate personnel carry a high sense of responsibility towards our customers and their product.
We continue our expansion and growth, especially in technological developments. Our precision components are manufactured according to customer drawings, specifications and international standards. Design and production by reverse engineering method is also provided as a service.
And finally, we offer competitive pricing, guaranteed!

With over 50 years of experience, we are one of the most innovative and modern companies in the field of precision technology. We have achieved international series prices through automation and robotic assembly. Our ultra-modern machinery enables the production of custom-made products, prototypes as well as small, medium and large series. Well-known companies from the semiconductor, optics, medical and aviation industries already rely on our quality.

We are a small company, founded in 2007 company based in the center of Cologne. We are specialized in the production of precision parts from all areas and materials. From a single prototype to series, we use the most modern equipment of the highest quality.

Company ZUT "PROJEKT" offers services in:
Processing of metal - milling, turning, Inen and outer grinding, Surface grinding, cutting, welding - steel, aluminum, stainless steel,
Engineering, manufacturing spare parts and machine elements

We offer:
- Turning
- Automatic turning (bar)
- Hard roes
- Milling
- ....
etc.

Spring-loaded rotary encoder mounting bracket
DHAF 8580

You know the application of these measuring units from your DIY store. When you buy a carpet, the metres you have to pay for are measured automatically while unrolling the carpet. The measurement is done by a measuring wheel which moves synchronously on the carpet and shows the number of metres removed from the roll on a small display.
In the industrial sector, where high precision is required, this is realised by using high-precision measuring systems. ABP-Antriebstechnik manufactures and supplies the appropriate components. Our new inhouse-produced spring-loaded rotary encoder mounting bracket DHAF completes the product range of rotary encoder accessories of ABP-Antriebstechnik. After successful introduction of the measuring wheels with 500 mm circumference in 2012, only one thing was still missing: an appropriate mounting bracket for rotary encoders in connection with the ABP measuring wheels. The high level of quality of the ABP measuring wheels featuring an aluminium core and 4 different running surface structures has proven its worth and, within a short period of time, has established successfully on the market (see article on “Measuring wheels”). The new rotary encoder mounting bracket (see fig.) is provided with a mounting plate with 6 holes arranged in a 60° grid pattern (pitch diameter of 48 mm). The big advantage of this arrangement lies in the assembly of the rotary encoder. Compared to a 3-hole solution, it is possible to realise an almost ideal direction of the rotary encoder cable. The rotary encoder mounting bracket is fitted with a parallel-moving mounting plate for the rotary encoder and two guide pillars. The mounting plate is provided with 4 special plastic bearings for minimum friction.
A significant advantage over angles with one-sided bearing is that the rotary encoder mounting bracket can be mounted regardless of the direction of rotation of the measuring wheel. This is advantageous for reversing systems, since measuring errors can thus be avoided. The required contact pressure is generated by springs. The maximum spring travel is 8 mm with a contact force of approx. 1.5 KG. Technical characteristics at a glance:

6-hole mounting plate in 60° grid pattern
Parallel-moving rotary encoder mounting bracket making the unit independent from the direction of rotation of the measuring wheel
Carefully matched spring pressure ensuring permanent contact of the measuring wheel
Max. spring travel of 8 mm for relieving the encoder bearing
2 mounting slots in the base plate allowed ideal positioning

The family ADO was founded in 2001 and since then performs turning and milling of individual items, as well as to small and medium series by.

The good cooperation with competent partners makes it possible also to offer our customers yet another addition service. These include round and flat grinding, all welding processes, laser and flame cutting and surface treatments and hardening process.

In addition to a flawless, high-quality execution, our company is a fast, economical and flexible to the customer, which is enabled by our lean and efficient disposition.

Due to our PPS system and the MDESystems we are able to individually adjust our production to our customers and respond to particular emergencies. Through this technique, we can guarantee our customers absolute punctuality in every situation.

We guarantee the quality of our work you through competent and motivated employees.Through our clear mission run, the DIN EN ISO 9001:2008, we guarantee quality and punctuality. On request, we conduct a 100% inspection of parts.

Machining
Using the latest CNC technology, we are capable of meeting your requirements, whether single piece or series, to meet the highest quality.

Quality assurance
We guarantee the quality of our work you through competent and motivated employees. Through our clear mission run, the DIN EN ISO 9001:2008, we guarantee quality and punctuality. On request, we conduct a 100% inspection of parts.

Measurement
Quality is our highest demand - measured with the latest 3D coordinate metrology.

Frästeile
max. Length 1020 mm
max. Width 650 mm
max. Height 500 mm

Turned parts
max. Diameter 600 mm
max. Length 800 mm

Flange components
max. Diameter 600.00 mm
max. Length 800.00 mm

Screws, connectors, and gears
max.Diameter 600 mm
max. Length 800 mm

ADRETEC ESTONIA OÜ specializes in CNC machining, focusing on large-sized parts for various industries.

Key Areas of Expertise:

Large-Part Machining: ADRETEC has modern CNC machines capable of handling large parts with high precision, ideal for industries needing durable, reliable components.

Custom Solutions: The company offers custom machining services, tailoring parts to meet specific client requirements with a commitment to quality.

Advanced Capabilities: Equipped with high-tech machinery, ADRETEC performs complex milling, turning, and laser cladding, drilling operations, ensuring accuracy and quality standards.

With a blend of experience and technology, ADRETEC ESTONIA OÜ is a trusted partner in CNC production for large parts.

We cover the market needs from design to finished product in the tooling industry, and in research and development of high technology.
Our know-how in the processing of exotic materials makes us specialists in aviation and aerospace, racing technology as well as in laboratory applications. Ausgwiesenes offer expertise as in the area of injection systems for marine diesel engines and tech in electrical drive technology. As a small company we offer flexibility, fast and secure solutions, the best quality in the appropriate price level.

We supply you in the following production forms:
-Steel investment casting
- machining (turned and milled parts)
-Sand casting (cast steel; gray cast iron; spheroidal cast iron; aluminum sand cast iron)
-Low die-cast aluminum
- Chill casting
-Aluminium injection molding
-Laser cutting
-Bending and stamping parts

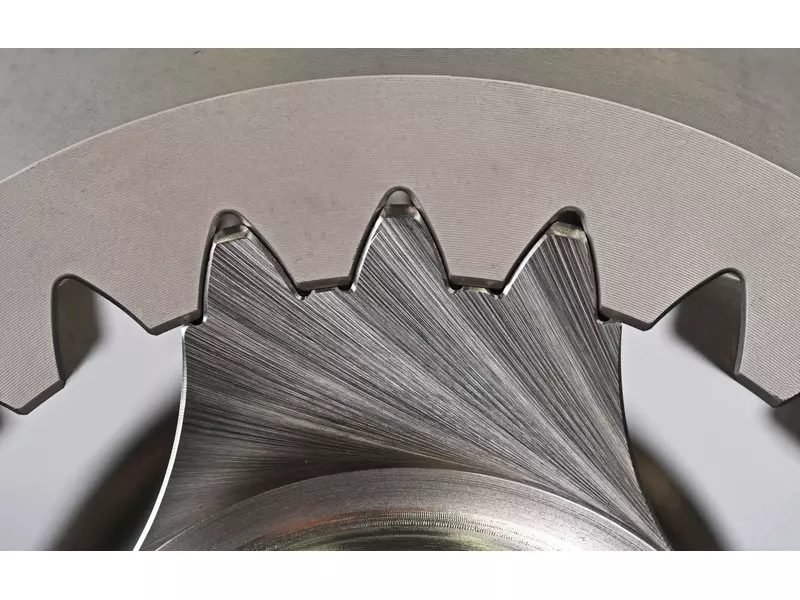

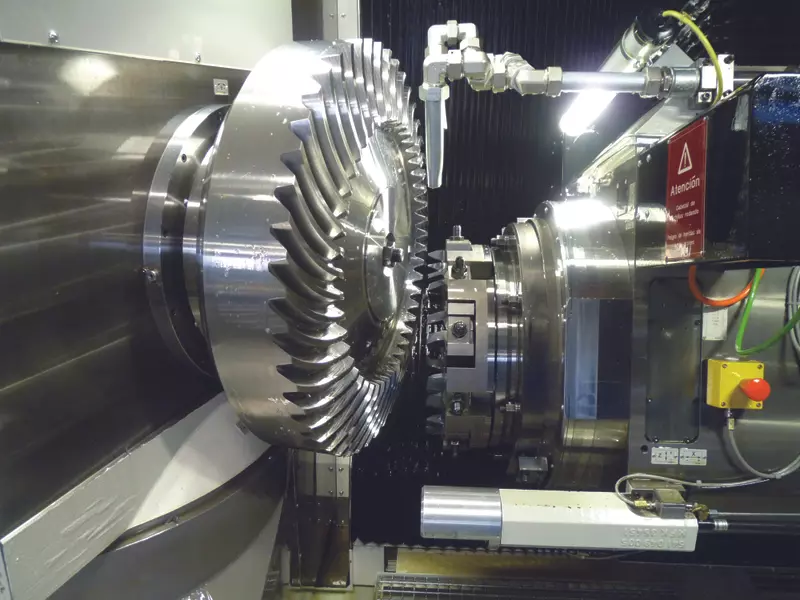

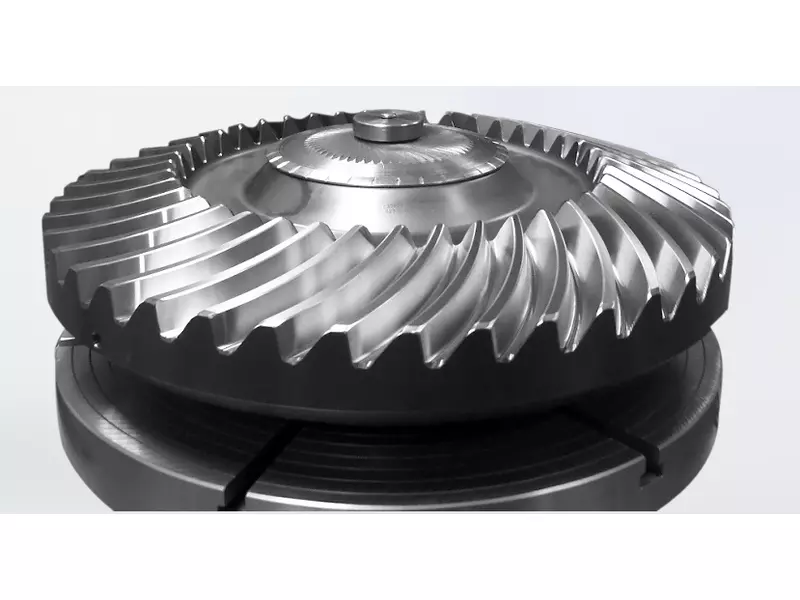

-Gears and bevel gears

ALAT is specialist for construction and production of precise tools for metal forming by plastic deformation, molds for injection of synthetic materials and non-ferrous metals.
We own an 100 ton eccentric press for production of parts from sheet metal.
In cooperation with our neighboring companies we can offer production on presses up to 400 tons, and quality surface protection of parts.

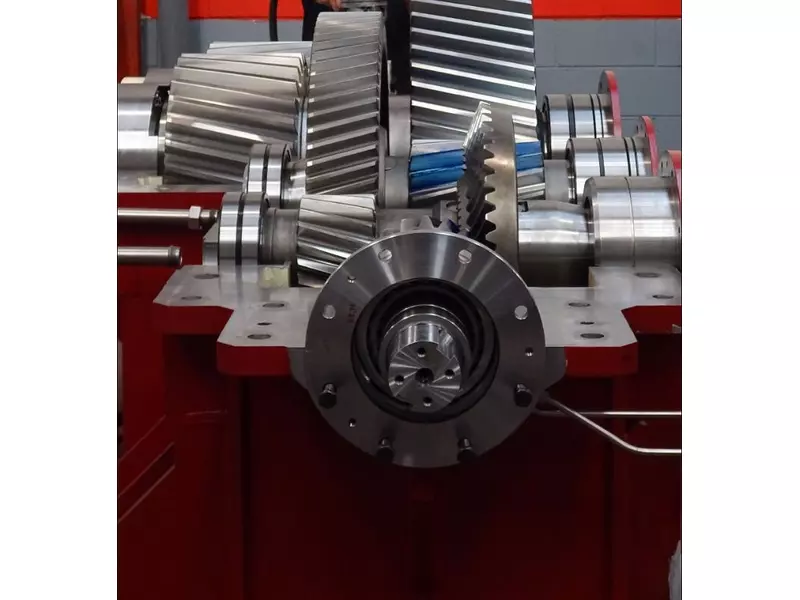

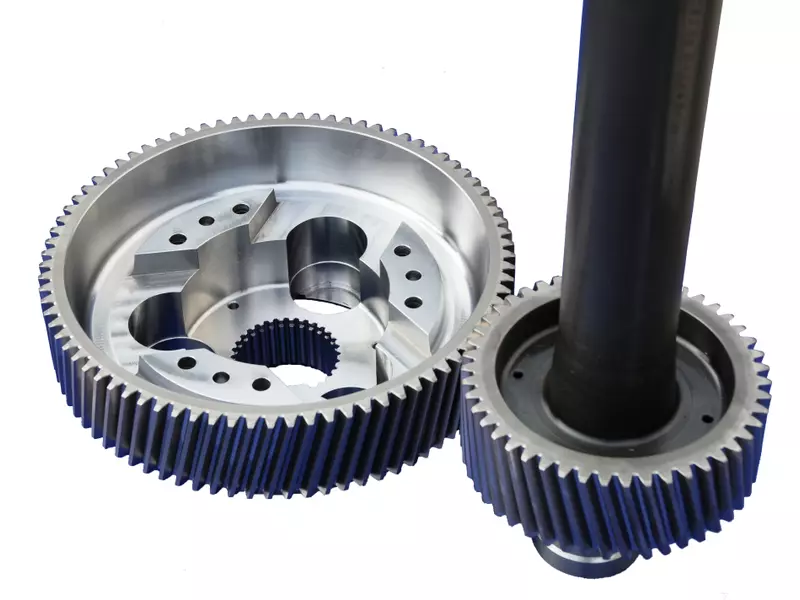

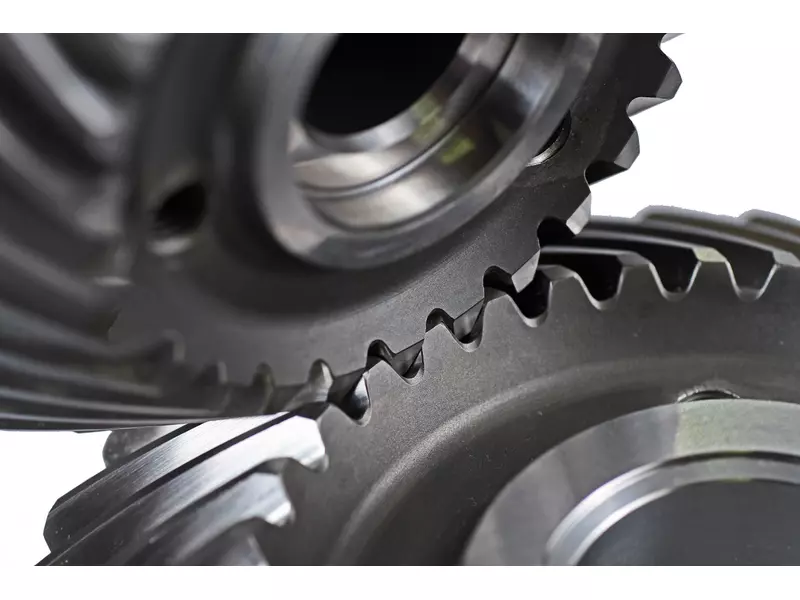

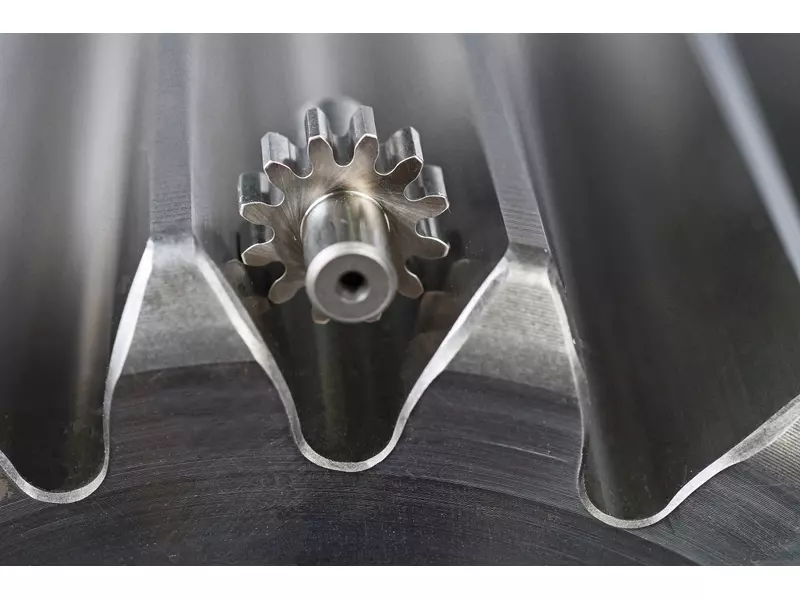

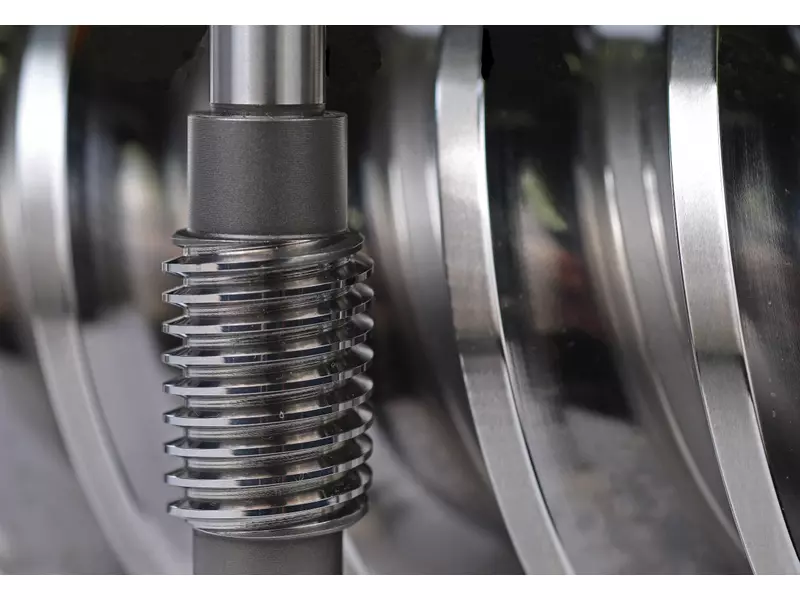

Our key competences are gearing, CNC turning and milling of steel-, aluminium- and copper alloys, as well as numerous cast alloys, drop forging, welding up to the manufacturing of special drives, couplings and machine components. We deliver as well single components and modules according to the drawing of the customer, as well as drive- and machine-elements ready for installation.

We manufacture in ISO 16949 / ISO 9001 certified factories customer related for many industries such as:

• Machine – and plant engineering
• Drive technology/ gear manufacturing
• Vehicle construction/automotive
• Agricultural machinery/hydraulics
• Production of steel, cement, petrochemicals and energy
